Project managementEngineering, Procurement, Construction, Commissioning, Operation and Maintenance services for,

• Facilities Topography and geotechnical field survey and Engineering in lay-out of pipe line network
• Minor-to-Mega Water, Oil & Gas Pipe Line facility construction projects geographically in entire area of Kingdom.
• Flow lines and Trunk lines with all diameters and its associated services in respect to the Client/consultant plan and Profile/shop drawings
• Horizontal directional drilling, Silt fencing, De-watering Shoring and Shuttering.
• Fabricate, Weld, Coat, install Pipe spools, Wellhead Piping and Manifolds
• Lateral lines and Production headers Scraper traps and all kind of Valves
• Electrical & Instrumentation technology of Piping System Customize
• Fabricate and install Steel/concrete pipe pedestal supports
• Bolt torque & tensioning of Equipment, structure and anchors
• Testing of Pipe line like Pressure test, Hydro test and expected MOAP before they Go-In-Service
• Cathode protection of static equipment’s, Tanks and Pipe line network.
• Compressor and Pumping Lift stations.

PIPE LINE MAINTENANCE SERVICES

Advance Industrial Resources (AIR) provides a wide range of maintenance solutions designed to address common problems including,

• Pipe line Rehabilitation
• Pipeline Chemical Cleaning
• Pipe line safety requirements during operation by Cathode protection, Pipe line coating and corrosion inhibitors.
• Hydrostatic testing, Maximum Average Operating Pressure (MAOP)
• Leaking survey, Testing & Leak surrender, Odorization
• Sand blasting, Abrasive painting, Epoxy coating and Wrapping.
• Cladding and Insulation of Pipe line
• Design, Fabricate, Epoxy coating and install Pipeline sand & scrapper traps facilities.
• In-Situ Leak surrenders
• Lateral line cleaning, Repair & Maintenance.


OVERVIEW OF A TYPICAL PIPE LINE COSNTRUCTION PROJECT



After the Field survey of Facilities Topography and Geotechnical following with, All Federal and state level permits are approved and agreements furnished, the process of pipe line very first will begin with barricading the construction boundaries of all locations including the temporary construction zone surrounding the Pipeline Right-of-Row(ROW), Staging and storage areas. Provisions of temporary roads are constructed to create direct paths from staging areas to Pipeline ROW.

• Procurement, Construction Staging & Storage Yards
• Clear cutting the ROW
• Excavating the Trench

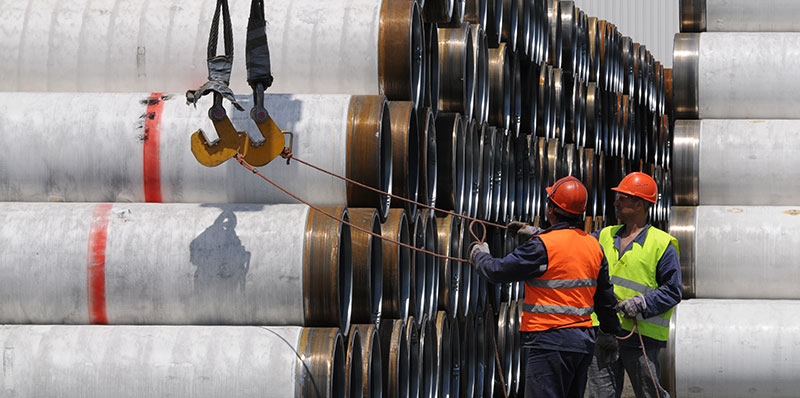

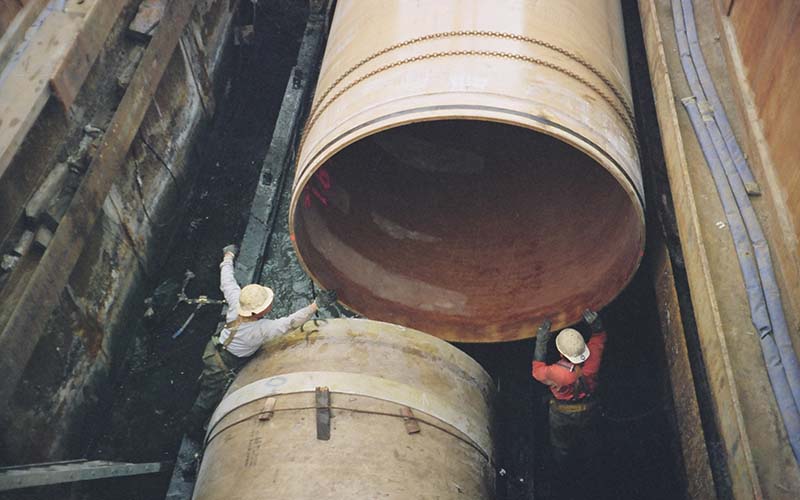

• Pipe transport, Stringing and Assembly
• Obstacles: Clearing Roads and Facilities
• Testing & Restoration
• Additional infrastructure
